WOLFSIN WHD240i

$574.00

or 6 weekly interest-free payments from $95.66 with Laybuy what's this?

The WHD240i adopts the latest Digital DMR technology, this results in a high quality DMR radio which is easy to use and very cost effective. Packed full of features the WHD240i is a compact intelligent DMR radio.

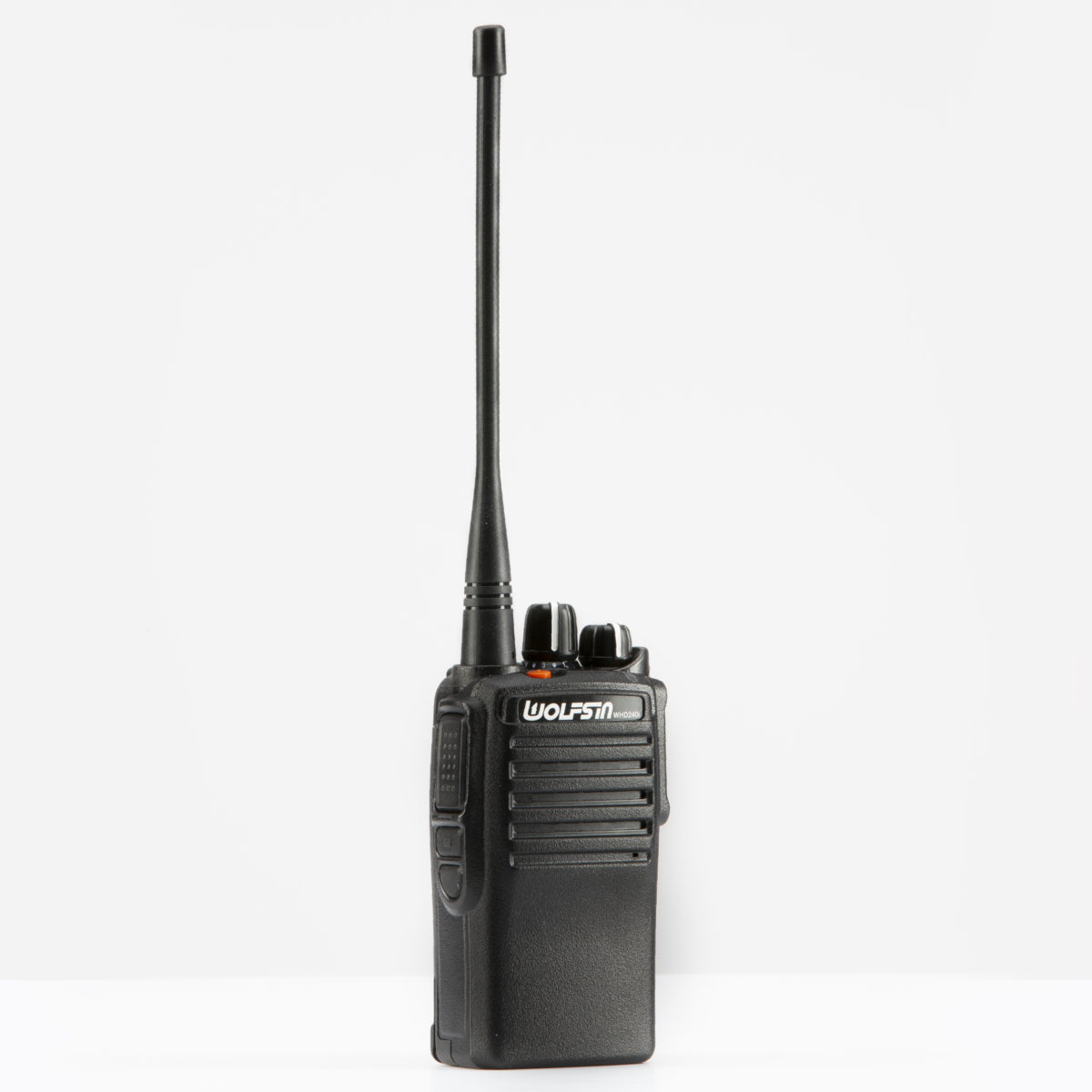

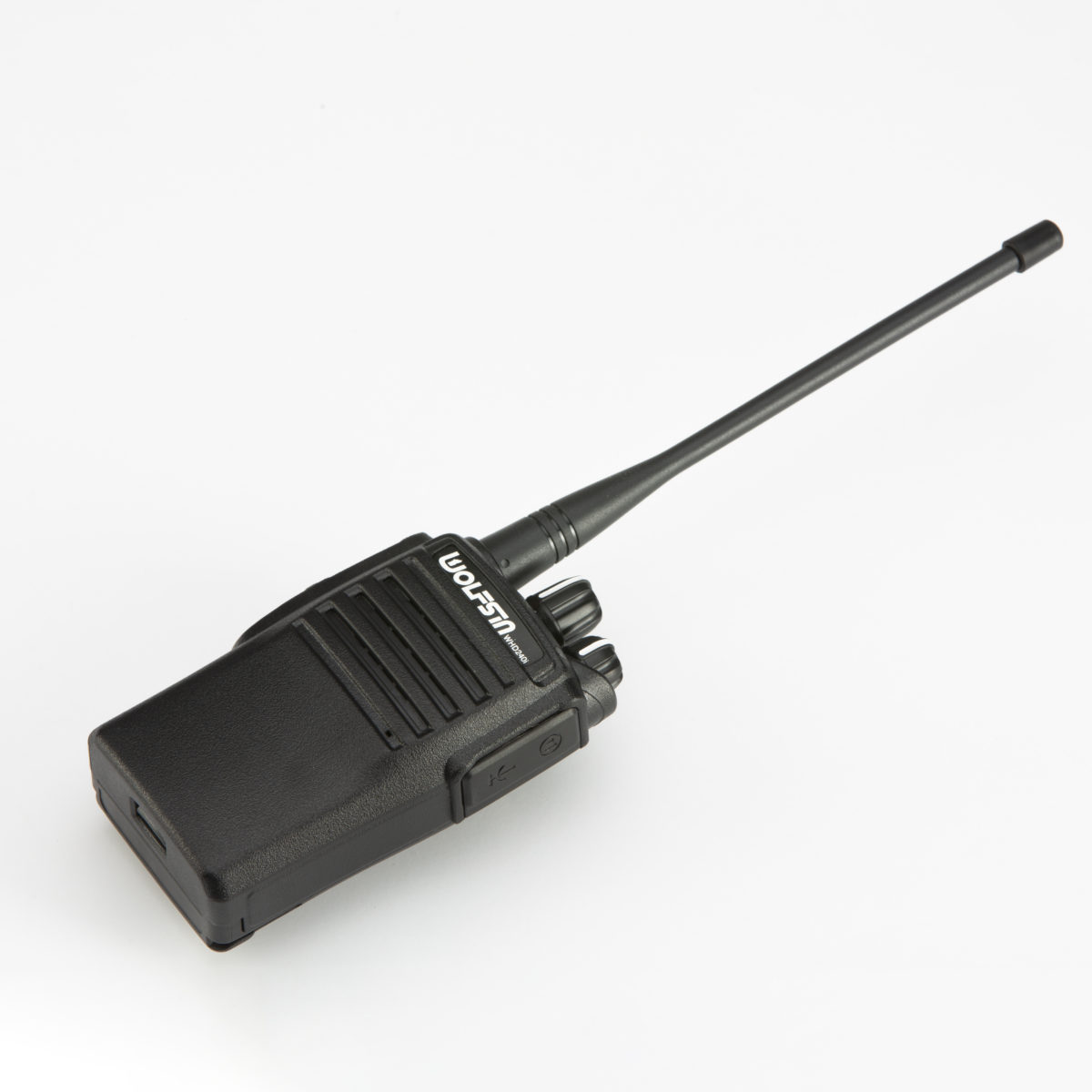

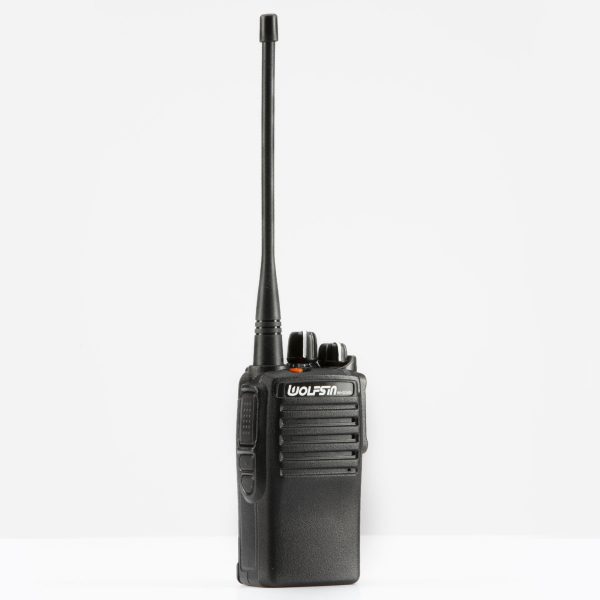

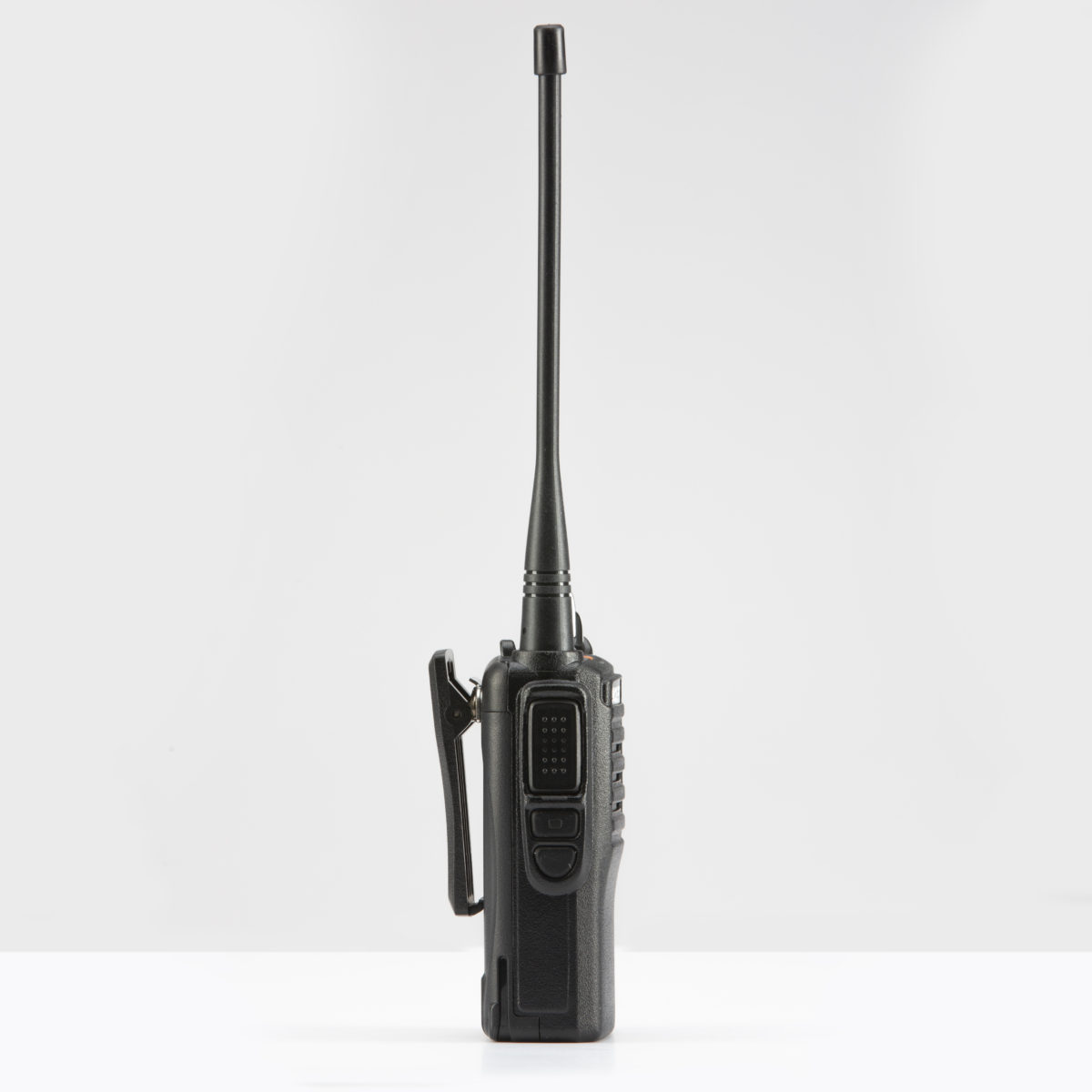

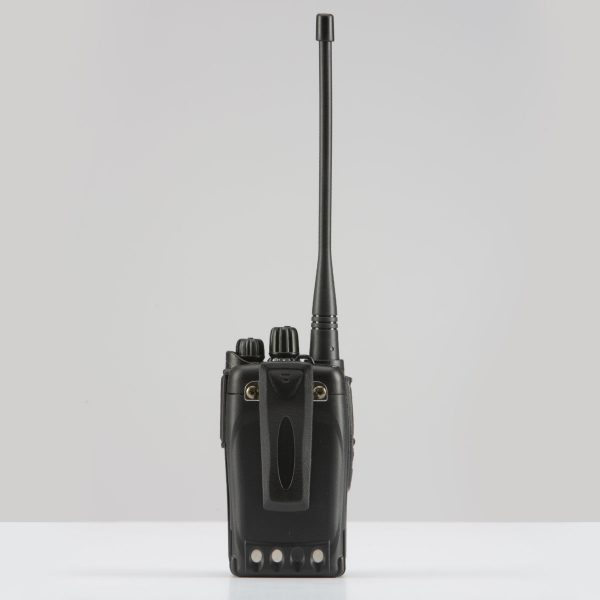

Note: UHF version is shown in the photos.

Features

  • Upto 64 channels available
  • Frequency range available 136-174Mhz, 400-480Mhz
  • DMR digital and Analogue channels
  • IP65 waterproof
  • Voice record function
  • 2/5 tone DTMF, MDC1200 on analogue
  • IP Roaming
  • Transmit interrupt
  • 1700mah Li-ion battery as standard
  • Battery life 14hrs in Digital and 11hrs in Analogue mode

Standard Package

  • Radio (either VHF or UHF depending on your requirements)
  • 1700mah Li-ion battery pack
  • Charging pod and power adaptor
  • User manual

Range

Specifications

 Frequency Range UHF: 400-480Mhz VHF: 136-174Mhz
 Channel Capacity 64
Zone Capacity 2 Zones
Channel Spacing 12.5/25Khz
Battery 1700mah Li-ion
Battery Life (5/5/90 Duty Cycle/ High Tx Power) Analogue: 11 Hours Digital: 14 Hours
Frequency Stability 1.0ppm
Dimensions (H x W x D) in mm 96.5 x 54 x 33
Weight 245g with standard battery

Transmitter

RF Power output UHF High power: 4W UHF Low power: 1WVHF High power: 5W VHF Low power: 1W
FM Modulation 11K0F3E @ 12.5KHz 16K0F3E @ 25KHz
4FSK Digital Modulation 12.5KHz Data only: 7K60FXD 25KHz Data & Voice: 7K60FXE
Conducted/ Radiated Emission -36dBm < 1GHz -30dBm > 1GHz
Modulation Limiting +-2.5kHz @ 12.5kHz +-5kHz @ 25kHz
FM Hum and Noise 40dB @ 12.5KHz 45dB @ 25kHz
Adjacent Channel Power 60dB @ 12.5kHz 70dB @ 25kHz
Audio Response (300-3000Hz) +1~-3dB
Audio Distortion <3%
Digital Vocoder Type AMBE+2
Digital Protocol ETSI TS 102 361-1,-2,-3

Receiver

Sensitivity - Analogue 0.35μV / -116dBm (20dB SINAD) 0.22μV / -120dBm (12dB SINAD)
Sensitivity - Digital 0.22μV / -120dBm (BER 5%) 0.25μV / -118dBm (BER 1%)
Adjacent Channel Selectivity TIA603C 70dB: TESI 70dB @ 25kHz TIA603C 60dB: TESI 60dB @ 12.5kHz
Spurious Response Rejection TIA603C : 75dB; ETSi: 70dB
Intermodulation TIA603C 70dB: ETSI 65dB
Blocking 84dB
Rated Audio Power Output 750mW/1000mW
Audio rated Distortion 3%
Audio Response (300-3000Hz) +1~3dB
Conducted Spurious Emission -57dBm < 1GHz -47dBm > 1GHz ETS300 086

Environmental

Operating Temperature -30°C ~ +60°C
Dust and Water Protection IP65
