TX-130U Twin Pack

$429.00

The TX-130 is designed with you in mind. Its compact with crisp clear and loud audio, setting it apart from other licence free radios. Whether they are used in factories, rest homes or outdoors on farms and hunting you can rest assured the TX-130 has been designed to deliver.

  • 5W power output
  • IP55 splash and dust proof
  • 80 PRS licecne free channels
  • 1500mah Battery
  • highly tuned antenna
  • very loud and crisp clear audioWe have tested the TX-130 by throwing it onto concrete numerous times (20+), testing its range over hills (4km with hilly terrain between the radios) and it has performed above our expectations (which were high to begin with!)

Out of stock

SKU: TX-130-Twin Pack Categories: ,

Features


  • 477Mhz frequency
  • 80 Channels
  • 73 CTCSS and 208 DCS tones
  • 1500mah Li-ion battery
  • IP55 splash and dust proof
  • Private Tone Generation System
  • VOX mode
  • Simplified 5 tone system
  • Compander system
  • Scan
  • Call
  • Battery balance Status
  • Compact design (W x H x D) 53 x 100.5 x 32.5 mm

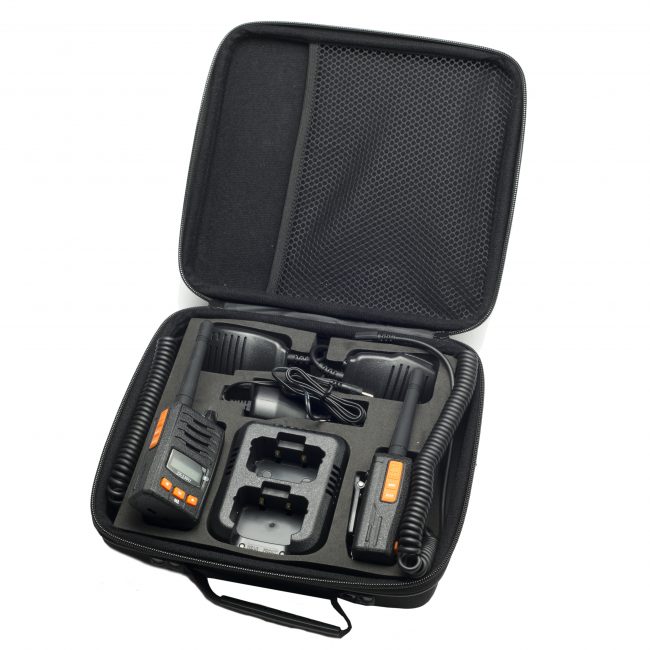

Standard Package

  • 2x compact PRS radios
  • 2x 1500mah Li-ion battery packs
  • 2x belt clips
  • 2x compact speaker/microphone
  • 1x charging pod
  • 1x 12v cigarette lighter adapter
  • 1x hard shell carry case

Range

Specifications

Frequency Range 400-480Mhz UHF
Number of channels upto 256
Channel spacing 12.5 KHz / 25KHz
Antenna Impedance 50Ω
Power Supply 7.4V (Li-ion Battery)
Current drain TX: High 1.6A, Low 0.6A RX: 330mA, Standby 60mA
Operating Temperature range -20°C ̴ +60°C
Dimension (WxHxD) mm 32.5 x 100.5 x 32.5
Weight (per radio) 170g
Average battery life 12 Hours
Battery Capacity 1200mAh
IP Level IP55
Environmental Sealing MIL-STD-810-C,D, E, F
Shock and Vibration MIL-STD-810-C,D,E,F and TIA/EIA603
Dust and Humidity MIL-STD-810-C,D,E,F and TIA/EIA603

Transmitter

Power 5W
Frequency Stability less than ±3 ppm
Max Frequency Deviation ±2.5KHz
TX Distortion less than 5%
Spurious Emission less than -36 dBm
Fm hum and Noise more than 40dB
Adjacent Channel Power less than 20μV
Audio Response 6dB/ OCT (+1 dB, -3 dB) Pre-emphasis (300-3000 Hz)

Receiver

Sensitivity less than 0.4μV
Inter Modulation Distortion more than 55 dB
Spurious Response more than 60 dB
Adjacent Channel Selectivity more than 60 dB
RX Distortion less than 5 %
FM Hum and Noise more than 40 dB
Audio Output Power 1.5W (16 Ω load)

Environmental

environmental

Brochures
